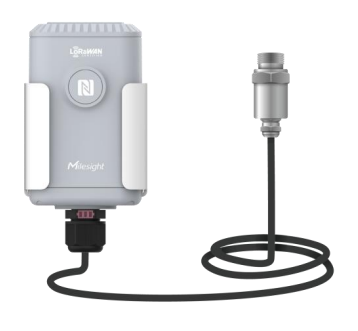

Milesight EM500-PP Pipe Pressure Sensor

	The Milesight EM500-PP is designed for measuring pipe pressure in harsh environments and transmitting data using LoRaWAN technology. With it's low power consumption technology the EM500-PP can operate for up to 10 years with it's 19000 mAh battery. Combined with a LoRaWAN gateway and IoT Cloud solution, users can monitor and manage all sensor data remotely. The EM500-PP is widely used for applications such as smart buildings, pipeline and tank systems monitoring, etc. Features High precision and corrosion resistance Ultra-wide-distance transmission up to line of sight of 10km IP67 waterproof enclosure for harsh environment applications Built-in 19000 mAh replaceable battery and work for 10 years without replacement Equipped with NFC for easy configuration Compliant with standard LoRaWAN gateways and network servers

The Milesight EM500-PP is designed for measuring pipe pressure in harsh environments and transmitting data using LoRaWAN technology. With it's low power consumption technology the EM500-PP can operate for up to 10 years with it's 19000 mAh battery.

Combined with a LoRaWAN gateway and IoT Cloud solution, users can monitor and manage all sensor data remotely. The EM500-PP is widely used for applications such as smart buildings, pipeline and tank systems monitoring, etc.

Features

High precision and corrosion resistance
Ultra-wide-distance transmission up to line of sight of 10km
IP67 waterproof enclosure for harsh environment applications
Built-in 19000 mAh replaceable battery and work for 10 years without replacement
Equipped with NFC for easy configuration
Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions	Transceiver: 105.4 mm (h) x 71 mm (w) x 69.5 mm (d) Pipe Pressure Sensor: 67.5 mm x ф27mm, with 1.5m cable
Installation	Pole, wall or DIN Rail Mounting
Environmental Characteristics
Operating Temperature	-30ºC to +70ºC
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP67(Transceiver)/IP65(Pipe Pressure Sensor)
Power
Battery	19000 mAh Li-SOCL2 battery (ER34615)
Battery Life	Upto 10 years (10 minute read interval)
Power On/Off	NFC with APP, or Internal Power Button
Sensor Characteristics
Pressure Sensor	Type: Gauge Pressure Range: 0 - 1600 kPa (16 Bar) Accuracy: ± 0.5% FS Resolution: 1 kPa (0.01 Bar) Overload: 150% FS Long-term Stability: ± 0.3% FS/year Process Connection: G 1/2” Male
Wireless Characteristics
Technology	LoRaWAN
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Configuration Interface
NFC	Power On/Off, configure with Mobile App
USB	N/A
Approvals
Regulatory	CE, FCC, RoHS, LoRaWAN Certified

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Milesight EM500-PP Pipe Pressure Sensor
EM500-PP-915M-G1/2M-4842	EM500-PP	LoRaWAN (IP67) Pipe Pressure Sensor (IP65), 1 kPa (16 bar) 1.5m	$440.00	C3
