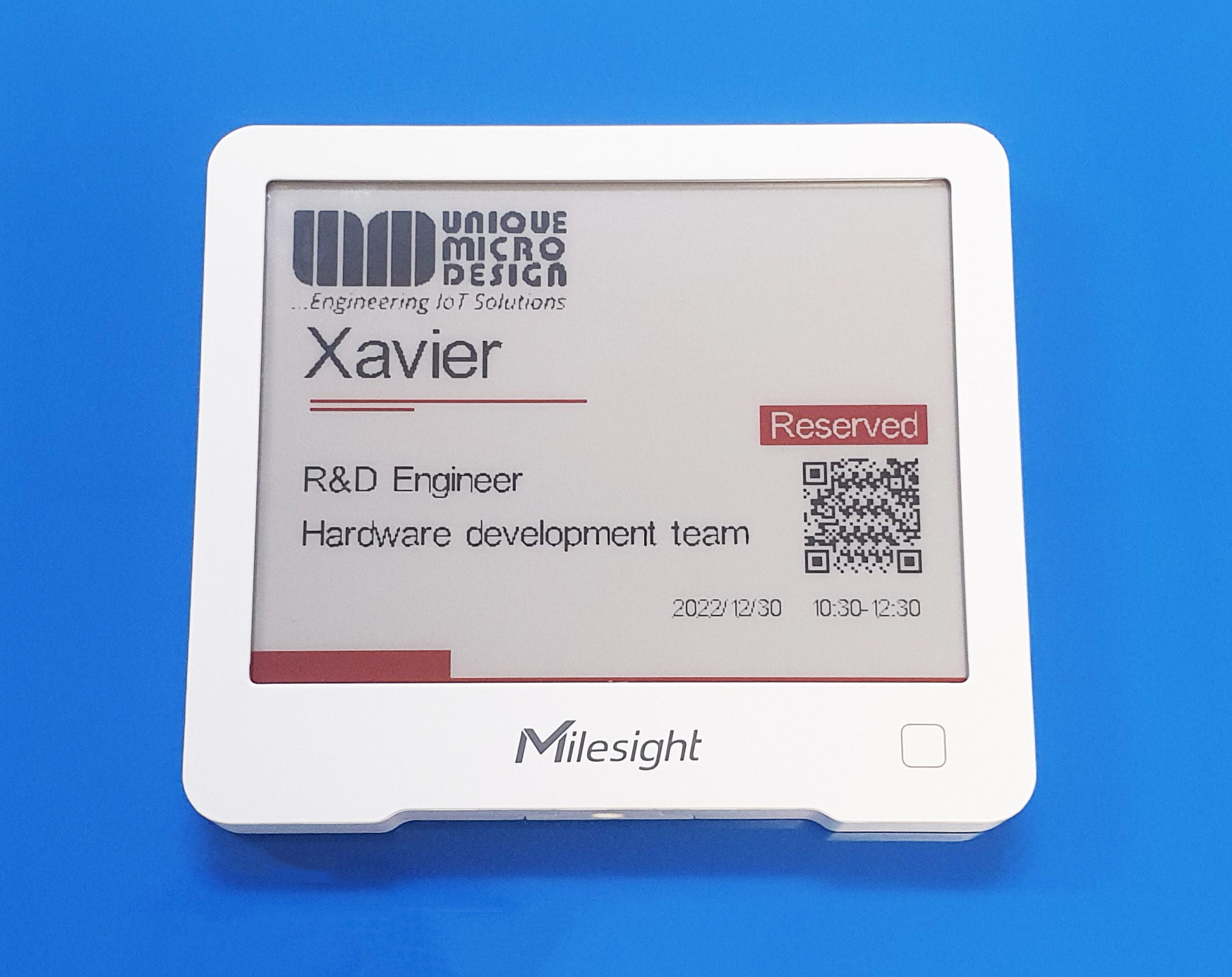

Milesight DS3604 IoT E-ink Display

	The Milesight DS3604 IoT E-ink Display has been designed to provide a more efficient and sustainable solution for "going paperless." The large 4.3-inch screen has a low level of power consumption and includes long-capacity batteries, allowing the DS3604 to have up to 5 years of battery life. The three-pigment system includes both red and black print on a white background. Designed to be flexible, shatterproof and lightweight the DS3604 Bi-stable E-ink Display provides excellent readability with its 400 x 300 pixel display, so it can easily be read across nearly 180°s of viewing angle. Display and quickly update as required text, images and QR Codes using NFC for local or LoraWan for remote and multicast communication. With Pre-customised Templates, a smart phone app, an API toolkit and the ability to use IoT Cloud data management, the DS3604 smart display can be utilised in an endless number of ways; in offices, retail stores, libraries, hospitals, laboratories, warehouses and much more – all in real time. Features Robust 4.2" 3-Pigment IoT E-Ink Display Supports Local and Remote Control for Multi-Unit Deployment and Operation NFC and LoraWan communications, with Multi-Function Button Make changes to your template design with ease using NFC configuration Upto 5 years of operation on a single set of (3) CR2450 Battery Cells

The Milesight DS3604 IoT E-ink Display has been designed to provide a more efficient and sustainable solution for "going paperless." The large 4.3-inch screen has a low level of power consumption and includes long-capacity batteries, allowing the DS3604 to have up to 5 years of battery life. The three-pigment system includes both red and black print on a white background. Designed to be flexible, shatterproof and lightweight the DS3604 Bi-stable E-ink Display provides excellent readability with its 400 x 300 pixel display, so it can easily be read across nearly 180°s of viewing angle.

Display and quickly update as required text, images and QR Codes using NFC for local or LoraWan for remote and multicast communication. With Pre-customised Templates, a smart phone app, an API toolkit and the ability to use IoT Cloud data management, the DS3604 smart display can be utilised in an endless number of ways; in offices, retail stores, libraries, hospitals, laboratories, warehouses and much more – all in real time.

Features

Robust 4.2" 3-Pigment IoT E-Ink Display
Supports Local and Remote Control for Multi-Unit Deployment and Operation
NFC and LoraWan communications, with Multi-Function Button
Make changes to your template design with ease using NFC configuration
Upto 5 years of operation on a single set of (3) CR2450 Battery Cells

Specifications

Physical Characteristics
Dimensions	Transceiver: 99 mm (w) x 87 mm (h) x 10.5 mm (d)
Installation	Wall Mounting, with tape or screws
Enclosure	White, ABS + PC
Environmental Characteristics
Operating Temperature	0ºC to +40ºC
Relative Humidity	0% to 95% (non-condensing) below 25°C
Ingress Protection	IP30
Power
Battery	3x CR2450 590mAh Lithium Cells
Battery Life	Upto 5 years
Display
Type	4.2-inch Black & White & Red E-Ink Screen
Resolution	400 x 300 Pixels (119dpi)
Viewing Angle	180°
Refresh Rate	16s (10 – 40°C)
Communication
NFC and Lorawan	With Milesight Toolbox App
Lorawan Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A/Class B (Default OTAA Class B)

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Milesight DS3604
DS3604-915M	DS3604	LoRaWAN Digital Character Display, 4.2 (107mm) 400x300 Black/Red E-Ink Display, 3xCR2450 Lithum Battery	$297.00	C3
