Intermec Sabre 1553 Bar Code Reader - Heater Box 		   Product Home
Product information

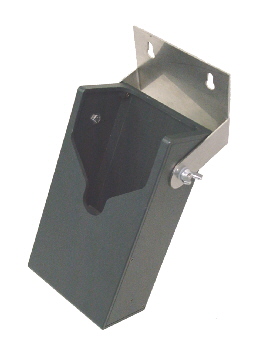

 The Model 550 Heater Box is a heated holder environment for the Intermec Sabre 1553 Industrial barcode scanner. The M550 Heater Box has been specifically designed to eliminate scanner exit window condensation. Therefore when moving from very low temperature environments to normal temperature areas, the M550 maintains mist free operation.
  • Allows mist free scanner operation in freezer-like environments
  • Forklift mountable
  • 24 - 48 V/DC operation
  • Overheat protection
  • 12 months warranty
  • Designed and manufactured in Australia by Unique Micro Design

Specifications

PhysicalDimensions108 (w) x 198 (h) x 68 (d) mm
Weight700 g
Power Voltage 24 - 48 V/DC
Current1.5 - 3.0 A
ConnectorPower In2 Pin Microphone screw in type (Cable supplied - 2m)
Mounting Bracket1.6 mm Steel Swivel with keyhole mounting holes
ControlsSwitchPower
OtherFuseM205, 5A
Condensation ControlWater Drain Hole
Ordering Information and Pricing
Part Number Model Number Description RRP T
%
Inc GST
[A] M550
9-0550-100-8

M550

Heater Box for Intermec 1553

 #REF! 10%

Document Reference: m550 Issue: 2002-07-08 | Edit
