UMD - Model 367
USB Smart IoT Wedge - Interface Converter

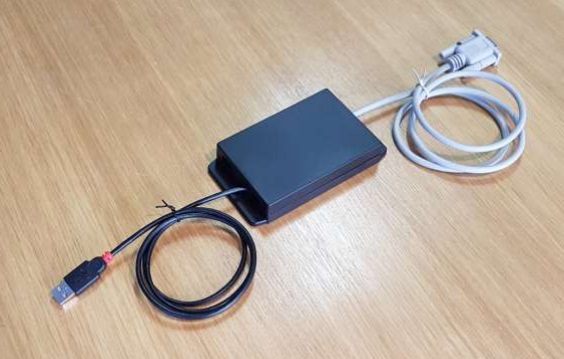

The Unique Micro Design Model 367A Series of Smart IoT Wedge Cables are Wifi based IoT connected devices with a USB client and an RS232 Interface. These can be configured to operate as an RS232 to USB conveter, where data flow and source is under control of the embedded micro-controller and/or a Cloud service.

Features

  • RS232 to USB Client Converter
  • Wifi IoT Cloud control (UMD cloud services)
  • HID or Serial Port Profile USB port
  • 12 months warranty

Specifications

Physical Characteristics
Dimensions160 (h) x 60 (w) x 25 (h) mm
Weight180 grams (including cable)
EnclosureBlack PVC Plastic Case
Interfaces
InterfacesUSB V2.0 HID Keyboard or Serial Port Proiles
RS2321m Cable, DB9M
IoT Interface802.11b/g/n for connection through local Wifi Router to Cloud
Electrical
Power RequirementsUSB 5V, 400mA (max)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Model 367 USB Smart IoT Wedge Cables
M367AR10005 M367A-USB M367 Smart IOT Wedge - RS232 to USB /SmartStock $308.00 U
Virtual Com Port Driver
[B] With USD/HID Interface (Act like keyboard wedge - no Driver required)
M367AR10HID M367A-HID M367 Smart IOT Wedge - RS232 to USB / HID $308.00 U
The UMD M367 allows a UHF RFID Tag to be read and inserted into a computer as though typed on a keyboard. Customisation available on request.
