UMD - Model 280 Terminal Serial Wedge Interface Converter |
Product Home Product information |
 |

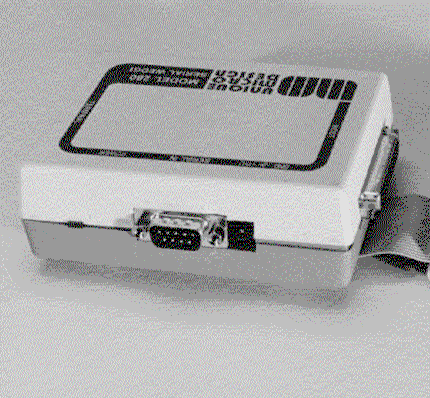

The UMD Model 280 and M281 Terminal Serial Wedge Interfaces insert serial data between a host computer and terminal. The Terminal Serial Wedge is a non intelligent active device which drives serial input data to the host at RS232 levels. The connected terminal communicates transparently with the host through the Serial Wedge. The input data is accepted by the host as if it were entered from the terminal. The Terminal Serial Wedge is ideally suited for interfacing hand held bar code scanners as it also provides power to these devices. Features
|
Specifications
| Physical | |
|---|---|
| Dimensions | 82 (w) x 111 (d) x 38 (h) mm |
| Enclosure | Moulded ABS Plastic |
| Colour | Two tone (white/grey) |
| Power | |
| Source | Via External Plug Pack (supplied with each unit) |
| Input Voltage | 7 - 10V DC |
| Input Current | 600mA (max) 100mA (typical) |
| Connector | 2.0mm DC Jack (centre -ve) |
| Indicator | LED power indicator |
| Communication Port | |
| Host Port | D25 Socket (DTE) |
| Terminal Port | (1 metre cable included to terminal |
| Serial Wedge Port | |
| Model 280 | D9 Plug (DTE) |
| Model 281 | D25 Plug (DCE) |
| Power Out | +5V DC 500mA (max) for Scanners |
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] UMD Model 280 Terminal Serial Wedge(Including Power Supply) | ||||
| 9-0280-200-9 | M280-D9 |
K280 UMD Serial Wedge |
$220.00 | 10% |
| 9-0281-200-4 | M281-D25 |
K281 Serial Wedge with D25 I/F |
$220.00 | 10% |
| [B] Accessories | ||||
| 1-6000-260-7 | PP9D600-F |
Plug Pack 9Vdc/600mA |
$24.20 | 10% |
| [C] Documentation | ||||
| 6-0280-992-7 | DOC-M280-PD | Product description | ||
| 6-0280-993-5 | DOC-M280-UM | User Manual | ||
| 9-6020-992-2 | DOC-UMD6020-SC | Standard Configuration (kit details with M280 and bardocereaders) | ||
|
