UMD - Model 264-S Sealed Programmable Keyboard |
Product Home Product information |
 |

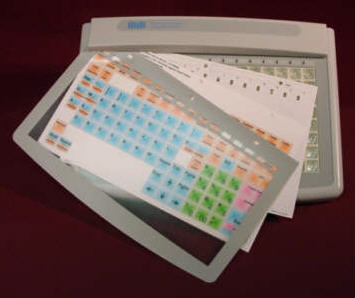

The UMD Model 264-S Series Sealed Custom Keyboards are part of the Unique Micro Design ProtoLink Architecture family of products. They are fully programmable sealed keyboards using positive tactile feedback keyswitches and a sealing overlay. The 128 keys are arranged in an 8 x 16 matrix. Each of the keys may be individually programmed with multiple keystroke sequences. This ensures total flexibility for your layout and means it can be tailored to suit your software exactly. The Model 264-S Series also feature inbuilt keyboard wedge, two serial ports and a "Wand Style" Bar Code decoder. This means all your requirements are integrated into a single package. An optional integrated 1 or 2 track magnetic card reader is also available. The Model 264-S can operate in either keyboard mode or serial mode. In keyboard mode, it becomes an IBM compatible PC/XT/AT or PS/2 keyboard and may be used in conjunction with the existing keyboard. In serial mode, data is sent via a serial port. Features
|
Specifications
| Physical Characteristics | |
|---|---|
| Dimension | 375(w) x 261(d) x 31 front - 83 top of lid(h)mm |
| Weight | 2.2Kg |
| Keys | 127-128 Individual Sealed Style Keyswitches |
| Indicators | 16 Programmable |
| Cable Length | 1.75m - Detachable |
| Environmental Characteristics | |
| Operating Temperature | 0 - 45°C |
| Storage Temperature | -10 - 55°C |
| Operating Humidity | 10 - 90% |
| Electrical Characteristics | |
| Voltage | 5V DC |
| Current | 200mA (more with Keyboard powered Peripherals) |
| Interfaces | |
| Types | 2x PC, AT or PS/2 (1 to Host PC, 1 from external keyboard)) 2x DB9 RS232 Serial, with +5V on Pin 7 1x Barcode Wand Input 1x 2 Track MCR Decoder (Internal) Optional USB HID Keyboard Out (Uses 1 Serial Port) |
| Connector | 2x 5 Pin Din 2x DB9 RS232 Serial 1x AMP D9 Wand Input |
| Operating Life | |
| Keystrokes | >50 million |
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] M264-S keyboards | ||||
| 9-0264-001-1 | M264-S00 |
Sealed Keyboard (no cables) |
$704.00 | 10% |
| 9-0264-033-4 | M264-S00I |
Sealed with I/O |
$880.00 | 10% |
| [B] M264-S Keyboard kits | ||||
| 9-0264-002-5 | M264-S00-W5 |
Sealed Keyboard with AT cable |
$704.00 | 10% |
| 9-0264-003-3 | M264-S00-W6 |
Sealed Keyboard with PS/2 cable |
$717.20 | 10% |
| 9-0264-055-7 | M264-S00QP |
UMD Sealed Keyboard 8x16 for QuickPOS |
$726.00 | 10% |
| [C] MCR Options | ||||
| 6-0264-701-6 | M264 opt C1 |
MCR Track 1 |
$88.00 | 10% |
| 6-0264-702-4 | M264 opt C2 |
MCR Track 2 |
$110.00 | 10% |
| 6-0264-703-2 | M264 opt C3 |
MCR Track 3 |
$88.00 | 10% |
| 6-0264-704-0 | M264 opt C12 |
MCR Track 1 & 2 |
$118.80 | 10% |
| 6-0264-705-8 | M264 opt C23 |
MCR Track 2 & 3 |
$118.80 | 10% |
| [D] Internal USB Option (Select both) | ||||
| 9-0366-200-8 | M366-KB |
M264 USB Keyboard Interface Conversion Kit |
$132.00 | 10% |
| 8-9030-112-9 | Production Service |
9-0366-200-8 Internal Installaion |
$99.00 | 10% |
| [E] External USB Option | ||||
| 9-0366-200-8 | M366-KB |
M264 USB Keyboard Interface Conversion Kit |
$132.00 | 10% |
| [F] Cables | ||||
| 2-5226-020-0 | CA226-2 |
UMD (5pin DIN Plug) to PS/2 K/B System Unit - 2m |
$9.17 | 10% |
| 2-5227-002-2 | CA227-0.2 |
UMD (5pin DIN Plug) to PS/2 K/B (Socket) Adaptor |
$7.33 | 10% |
| 2-5202-020-2 | CA202-2 |
5p DIN Plug to Plug - 2m |
$7.33 | 10% |
| 2-6037-020-5 | CA6037 |
Keyboard Cable with PP |
$74.80 | 10% |
| 2-6264-020-4 | CA6264 |
KBD Cable W Plug/P PS/2 |
$74.80 | 10% |
| [G] Serial Cable Options | ||||
| 2-5211-020-1 | CA211-2 |
D9S to D9S Serial - 2m |
$10.27 | 10% |
| 1-6004-107-5 | PPI6D1000-D7 |
Plug Pack In-Line 6V 1000mA |
$30.80 | 10% |
| [H] Accessories | ||||
| 4-0022-001-0 | M264-S00 Legnd Insrt Sht Sngle |
$0.31 | 10% | |
| [I] Documentation/Software | ||||
| 6-0264-992-9 | DOC-M264-PD | Product description | ||
| 6-0264-993-7 | DOC-M264-UM | User Manual | ||
| 9-3143-400-4 | S143-4 |
ProtoLink Prog. Util. (inc manual in PDF) |
$14.67 | 10% |
| 9-3146-501-5 | S146 |
PTP Download Utility for Windows |
$14.67 | 10% |
| 6-0264-994-5 | DOC-Proto-RM |
Ref/Prog Kit Manual+Software |
$29.33 | 10% |
| 7-5010-122-7 | DOC-AN-122 | Product overview: UMD Custom Keyboards | ||
| 7-5020-107-7 | DOC-TN-107 | UMD ProtoLink Architecture | ||
| 7-6070-001-1 | DOC-PROTOLINK-RM | UMD ProtoLink Reference Manual only | ||
| Notes | ||||
| (a) Both CA226 and CA227 cables are required for PS/2 operation | ||||
| (b) Plug pack is required for use in serial mode. | ||||
| (c) Programming kit must be ordered separately | ||||
