UMD - Model 250-S Industrial Programmable Keyboard |
Product Home Product information |
 |

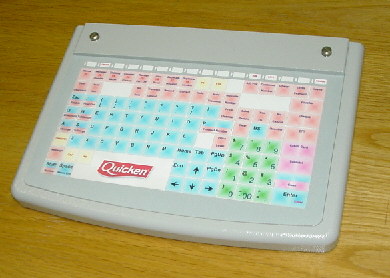

The UMD Model 250 Series Industrial Keyboards are part of the Unique Micro Design ProtoLink Architecture family of products. They are fully programmable sealed keyboards using positive tactile feedback keyswitches and a sealing overlay. The 128 keys are arranged in an 8 x 16 matrix. Each of the keys may be individually programmed with multiple keystroke sequences. This ensures total flexibility for your layout and means it can be tailored to suit your software exactly. The Model 250 Series also feature inbuilt keyboard wedge, two serial ports and a "Wand Style" Bar Code decoder. This means all your requirements are integrated into a single package. The Model 250 can operate in either keyboard mode or serial mode. In keyboard mode, it becomes an IBM compatible PC/XT/AT or PS/2 keyboard and may be used in conjunction with the existing keyboard. In serial mode, data is sent via a serial port. The Model 250 Series is constructed with a cast aluminium surround for strength and reliability in the most demanding environments, an optional sealed cable entry system is also available. Features
|
Specifications
| Physical Characteristics | |
|---|---|
| Dimension | 375(w) x 261(d) x 31 front - 70 top of lid)(h)mm |
| Weight | 4.0kg |
| Power | |
| Power | Via keyboard interface or external plug pack |
| Interfaces | |
| Keyboard interface | PC, AT or PS/2 protocols (USB available upon request) |
| Serial interface | 2 x RS232C (DTE) ports D9 connector |
| Bar Code Decoder | Digital wand type (TTL) with AMP D9 connector |
| Optional | 2x Serial DB9 and 1x Parallel BD25 with IO Expansion Board |
| Keyboard Layout | |
| Key matrix | 8 x 16 (128 keys) |
| Spacing | 19.05 mm centres |
| Reliability | 1,000,000 operations |
The Model 250 Custom Keyboard can be uniquely configured to your customer requirements.
Please contact Technical Support to discuss customisation and other options.
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] M250 keyboard | ||||
| 9-0250-001-3 | M250-S00 |
Sealed Keyboard |
$1,245.20 | 10% |
| 9-0250-002-1 | M250-K00 |
Keycap Keyboard |
$1,245.20 | 10% |
| 9-0250-010-3 | M250-K01Y01 |
Keycap QWERTY |
$1,246.67 | 10% |
| Only standard pricing shown. Contact UMD for other options. | ||||
| [B] Cables | ||||
| 2-5226-020-0 | CA226-2 |
UMD (5pin DIN Plug) to PS/2 K/B System Unit - 2m |
$9.17 | 10% |
| 2-5227-000-1 | CA227 |
UMD (5pin DIN Plug) to PS/2 K/B (Socket) Adaptor |
$7.33 | 10% |
| 2-5202-020-2 | CA202-2 |
5p DIN Plug to Plug - 2m |
$7.33 | 10% |
| 2-6037-020-5 | CA6037 |
Keyboard Cable with PP |
$74.80 | 10% |
| 2-6264-020-4 | CA6264 |
KBD Cable W Plug/P PS/2 |
$74.80 | 10% |
| [C] Serial Cable Options | ||||
| 2-5211-020-1 | CA211-2 |
D9S to D9S Serial - 2m |
$10.27 | 10% |
| 1-6004-107-5 | PPI6D1000-D7 |
Plug Pack In-Line 6V 1000mA |
$30.80 | 10% |
| [D] Documentation/Software | ||||
| 9-3143-400-4 | S143-4 |
ProtoLink Prog. Util. (inc manual in PDF) |
$14.67 | 10% |
| 9-3146-501-5 | S146 |
PTP Download Utility for Windows |
$14.67 | 10% |
| 6-0264-994-5 | DOC-Proto-RM |
Ref/Prog Kit Manual+Software |
$29.33 | 10% |
| 7-5010-122-7 | DOC-AN-122 | Product overview: UMD Custom Keyboards | ||
| 7-5020-107-7 | DOC-TN-107 | UMD ProtoLink Architecture | ||
| 7-6070-001-1 | DOC-PROTOLINK-RM | UMD ProtoLink Reference Manual only | ||
| Notes | ||||
| (a) Both CA226 and CA227 cables are required for PS/2 operation | ||||
| (b) Plug pack is required for use in serial mode. | ||||
| (c) Programming kit must be ordered separately | ||||
| Protolink OEM products | ||||
|
