UMD - Model 211 Custom LCD Terminal Computer - Terminal |
Product Home Product information |
 |

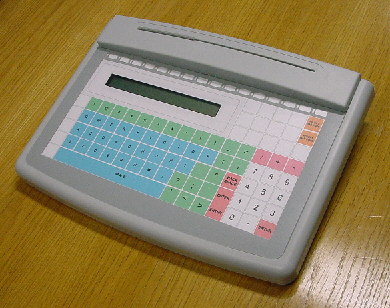

The UMD Model 211 Series Custom LCD Terminals are part of the Unique Micro Design ProtoLink Architecture family of products. Both sealed keys (with tactile feedback), and removable keycap style keyswitches are available. The keys can be arranged in mixture of half offset (QWERTY style) or "chess board" style layouts. Each of the keys may be individually programmed with multiple keystroke sequences. This ensures total flexibility of layout and means it can be tailored to suit your software exactly. The Model 211 Series also feature an inbuilt keyboard wedge, two serial ports, backlight LCD display and Bar Code decoder. This means all your requirements are integrated into a single, space saving package. The liquid crystal display (LCD) incorporates 2 lines of 40 characters. Cable connections are recessed to reduce footprint. An optional sealed cable entry system is also available. In serial mode, data is sent via a serial port. It may be used as a serial wedge between terminal and host for terminal keyboard substitution, allowing extra ports for serial devices. Power is supplied externally (either 5V DC regulated or 7-9V DC unreg.). An optional plug pack is available.
|
Specifications
| Dimension | 375(w) x 261(d) x (31 front - 83 top of lid)(hmm |
| Weight | 2.2 kg |
| Power | Via keyboard interface or external plug pack |
| Keyboard interface | PC, AT or PS/2 protocols (others available upon request) |
| Key matrix | 8 x 16 (128 keys) |
| Spacing | 19.05 mm centres |
| Reliability | 1,000,000 operations |
| Serial interface | 2 x RS232C (DTE) ports D9 connector |
| Bar Code Decoder | Digital wand type (TTL) with AMP D9 connector |
| Magnetic card data format | Conforming to ISO 3544 Tracks 1, 2, 3, 1 & 2 or 2&3 |
The Model 211 Custom Terminal can be uniquely configured to your customer requirements.
Please contact Technical Support to discuss customisation and other options.
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] Custom M211-S Sealed Key Terminals (Excludes Plug Pack Power Supply) | ||||
| 9-0211-100-0 | M211-S00 |
LCD Terminal Sealed |
#REF! | 10% |
| 9-0211-200-6 | M211-S00I |
LCD Terminal Sealed w I/O |
#REF! | 10% |
| 9-0211-400-3 | M211-S00H01 |
LCD Terminal Sealed w Sw Regulator |
#REF! | 10% |
| [B] Custom M211-K Keycap Terminals (Excludes Plug Pack Power Supply) | ||||
| 9-0211-500-4 | M211-K00Y01 |
LCD Terminal Keycap |
#REF! | 10% |
| 9-0211-600-0 | M211-K00IYxx |
LCD Terminal Keycap w I/O |
#REF! | 10% |
| 9-0211-601-8 | M211-K01IYxx |
LCD Terminal Keycap w I/O |
#REF! | 10% |
| [C] MCR Options | ||||
| 6-0264-701-6 | M264 opt C1 |
MCR Track 1 |
$88.00 | 10% |
| 6-0264-702-4 | M264 opt C2 |
MCR Track 2 |
$110.00 | 10% |
| 6-0264-703-2 | M264 opt C3 |
MCR Track 3 |
$88.00 | 10% |
| 6-0264-704-0 | M264 opt C12 |
MCR Track 1 & 2 |
$118.80 | 10% |
| 6-0264-705-8 | M264 opt C23 |
MCR Track 2 & 3 |
$118.80 | 10% |
| [D] Cables | ||||
| 2-5226-020-0 | CA226-2 |
UMD (5pin DIN Plug) to PS/2 K/B System Unit - 2m |
$9.17 | 10% |
| 2-5227-000-1 | CA227 |
UMD (5pin DIN Plug) to PS/2 K/B (Socket) Adaptor |
$7.33 | 10% |
| 2-5202-020-2 | CA202-2 |
5p DIN Plug to Plug - 2m |
$7.33 | 10% |
| 2-6037-020-5 | CA6037 |
Keyboard Cable with PP |
$74.80 | 10% |
| 2-6264-020-4 | CA6264 |
KBD Cable W Plug/P PS/2 |
$74.80 | 10% |
| [E] Serial Cable Options | ||||
| 2-5211-020-1 | CA211-2 |
D9S to D9S Serial - 2m |
$30.80 | 10% |
| 1-6004-107-5 | PPI6D1000-D7 |
Plug Pack In-Line 6V 1000mA |
$30.80 | 10% |
| [F] Terminal Cable Options | ||||
| 2-6027-020-1 | CA6027-2 |
Wyse60 to M164 H/S |
$30.80 | 10% |
| 2-6028-020-6 | CA6028-2 |
M164 L/L Wyse60 H/S |
$30.80 | 10% |
| 2-6035-020-5 | CA6035-2 |
M125B to M264 CDI opt |
$30.80 | 10% |
| [G] Accessories | ||||
| 4-0043-001-3 | M211 Opt L01 Legend Ins Sheet |
$0.00 | 10% | |
| [H] Documentation/Software | ||||
| 6-0211-992-4 | DOC-M211-PD | Product Description | ||
| 6-0211-993-2 | DOC-M211-UM | User Manual | ||
| 9-3143-400-4 | S143-4 |
ProtoLink Prog. Util. (inc manual in PDF) |
$14.67 | 10% |
| 9-3146-501-5 | S146 |
PTP Download Utility for Windows |
$14.67 | 10% |
| 6-0264-994-5 | DOC-Proto-RM |
Ref/Prog Kit Manual+Software |
$29.33 | 10% |
| 7-5010-122-7 | DOC-AN-122 | Product overview: UMD Custom Keyboards | ||
| 7-5020-107-7 | DOC-TN-107 | UMD ProtoLink Architecture | ||
| 7-6070-001-1 | DOC-PROTOLINK-RM | UMD ProtoLink Reference Manual only | ||
| Notes | ||||
| (a) Both CA226 and CA227 cables are required for PS/2 operation | ||||
| (b) Plug pack is required for use in serial mode. | ||||
| (c) Programming kit must be ordered separately | ||||
| KA Series Keycaps | ||||
| LegendInsert Sheets (legending relegendable keycaps) | ||||
| Protolink OEM products | ||||
|
