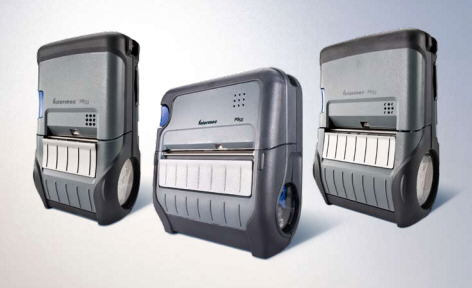

Intermec - PB Label Series
Portable Wireless Label and Receipt Printer


The Intermec PB Series Label Printers are a range of wireless printers, providing the best available 2, 3 or 4" label printing solution for your on-the-go workforce. These printers are designed for printing applications in warehousing, distribution, in-store retail and enterprise asset management, where the time to finish of printing must be as short as possible.

With the fastest print speed and greatest onboard memory of any mobile printer available today, these printers are able to deliver labels or receipts 20 to 30% faster, while also easily handling complex graphical images.

Features

  • Rugged design built for the field environment
  • Lightweight, belt clip configuration provides excellent portability
  • Long life field replaceable battery for all day printing
  • Serial and USB Communication Ports
  • Wireless Bluetooth or WiFI interface for hands free mobility
  • Easy media replacement
  • Exceptional print quality for text, graphics and bar codes
  • Automatic sleep mode for maximum battery life
  • IP54 rated with optional protective case
  • Works with Intermec Smart Systems
  • 12 Month Return to Base Warranty with Extended Warranty Options Available

Specifications

PB22PB32PB50
Physical Characteristics
Width101 mm127 mm160 mm
Height176 mm182 mm175 mm
Depth71 mm81 mm79 mm
Weight678g(with battery)828g(with battery)1189g(with battery)
Environmental Specifications
Operating Temperature-15C to 50C
Storage Temperature-30C to 70C
Operating Humidity10% to 90% (Non-Condensing)
Storage Humidity10% to 90% (Non-Condensing)
Rain & Dust ResistanceIP54 (Requires optional protective case)
Drop Spec1.5m to concrete
Power
Battery Type7.2 LiIon7.2 LiIon14.8 LiIon
Battery Capacity2250mAh2250mAh2200mAh
Recharge Time180 minutes
Printer Mechanism
Resolution203dpi (8 dots/mm)
PrintheadDirect Thermal
Print Speed101.6 mm/sec
Print Width54mm82mm108mm
Controller
Programming LanguageIPL, Fingerprint, ZSim, DSim, ESC-P
Memory16MB RAM, 64MB Flash
User InterfaceLCD and 4 buttons: standby, paper feed, setup, info.
Four audio status indicators: error, hardware change, button press and startup alerts.
Fonts
ResidentEnglish and Latin
DownloadableYes
GraphicsSupports user-deined fonts, graphics, formats and layouts, including custom logos
Barcode SymbologiesAll major 1D and 2D symbologies are supported.
Media Specifications
Media TypeThermal Paper, one ply
Paper Width25.4mm to 55.8mm30.5mm to 83.8mm49.0mm to 111.5mm
Roll Diameter57 mm67 mm67 mm
Core Inner Diameter19 mm
Interface
StandardRS232C, USB
OptionalBluetooth, IEEE 802.11g WiFi
Wireless SecurityAuthentication and Encryption Options: WPA, WPA2, WEP (64 and 128), 802.1x (EAP-TLS, TTLS, LEAP, PEAP, EAP-Fast (Pending)), 802.11i-ready
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Intermec PB50 Portable 4" Label Printer with swivel belt clip only. Does not include Battery
PB50A12004100 Standard, Fingerprint/DP, Bluetooth, Standard, No option, No option (Must order Battery Pack separately for portable application.) #N/A H
PB50A11803100 Standard, IPL, WLAN ETSI, Standard, No option, No option (Must order Battery Pack separately for portable application.) #N/A H
PB50A12803100 Standard, Fingerprint/DP, WLAN ETSI, Standard, No option, No option (Must order Battery Pack separately for portable application.) #N/A H
[B] Intermec PB22 Portable 2" Label Printer with swivel belt clip and battery
PB22A10000000 PB22 2in Portable Label Printer,No Radio $1,078.00 H
PB22A10004000 PB22 2in Portable Label Printer , BT $1,265.00 H
PB22A10803000 PB22 2in Portable Lbl Printer,WLAN(ETSI) #N/A H
[C] Intermec PB32 Portable 3" Label Printer with swivel and Battery
PB32A10000000 PB32 3in Portable Label Printer,No Radio $1,243.00 H
PB32A10004000 PB32 3in Portable Label Printer , BT $1,430.00 H
PB32A10803000 PB32 3in Portable Lbl Printer,WLAN(ETSI) #N/A H
[D] PB50 Accessories
Battery
318-026-001 Battery Pack, 16.8V, 2.2 Ah, Li-Ion (PB5x/PW50 ) #N/A H
Mounts
225-740-001
225-741-001 Cart Mount, PB5x, Non-powered adapter $187.00 H
Protective Cases, Belts and Sraps
825-192-001 PB5x Case, Protective $209.00 H
[E] PB22/32 Accessories
Battery
318-030-001
Protective Cases, Belts and Sraps
203-894-001 PB2x Protective Case $242.00 H
203-893-001 PB3x Protective Case $242.00 H
Mounts
203-896-001 vehicle Mount, AV14, PB3x & PB2x (PB3x & PB2x.Includes adapter plates for both PB2x and PB3x printers; must order power supplies and cables separately.) #N/A H
203-895-001 PB2X/3X CART MOUNT (Non-powered adapter for both PB2x and PB3x printers.) $187.00 H
[F] Common Accessories
Power Supplies for Charging PB50
851-082-105 Univ Supply R/A 2.5x5.5 FWC5012 CEC/RoHS (Right Angle Plug. ) $143.00 H
2-5199-020-0 CA199-2 IEC Power to AU 3 pin Plug - 2m $11.00 3
4 Bay Battery Charger
852-915-001 Battery Charger, Quad (Requires AC adapter) $605.00 H
851-082-103
2-5199-020-0 CA199-2 IEC Power to AU 3 pin Plug - 2m $11.00 3
Protective Cases, Belts and Straps
074789 Handstrap Kit $41.80 H
074788
Power Cables to Mounts (not Forklift)
226-215-101 Cable, DC power, 4ft RoHS $64.90 H
226-215-102 Cable, DC power, 4ft , right angle RoHS $121.00 H
Power Cables direct to PB50
852-909-001 Cable, DC Power, PB42 RoHS $64.90 H
074866 Adapter, Cig lighter (PB42/2x/3x/5x,PW50) $74.80 H
Vehicle Battery Power Cables to Power Cables (above)
206-875-102 Cable, Truck Power, 8ft RoHS $56.10 H
206-875-106 Cable, Truck Power, 16ft RoHS $56.10 H
206-875-109 Cable, Truck Power, 22ft RoHS $74.80 H
Power Supply for Forklift Kit
203-880-001
Communications Cables
075497 Cbl, Serial data, RoHS (PB2x/PB3x/PB42/PB5x/PW50 ) $94.60 H
2-6312-030-9 CA6312-3 USB A to mini-B - 3m $11.00 C
Media
320-377-001
320-376-001
1-110101-00 Cleaning Card, 2x6in, box of 25 $37.40 H
1-110201-00 SU201 Cleaning Card, 3.33x6, box of 25 $38.50 C
1-110501-00
[G] Service Contracts
PB50-BRZDC3
[H] Consumables
Labels for PB50
9-9651-016-3 L99X149DOC-A125 Label DT 99 X 149 mm A-Core 125 lab/roll Wound Out Permanent $12.10 C
Contact UMD for pricing at Sales@umd.com.au
