Large Rigid Intermec RFID Tag 		   Product Home
Product information

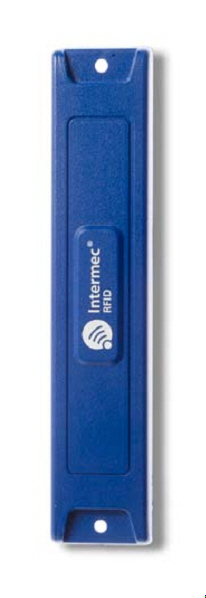

Intermec’s Large Rigid tag is a truly passive UHF radio frequency identiication (RFID) transponder that delivers superior performance on a variety of surfaces including plastic, wood and metal. The tag, available in both Gen 2 and ISO 18000-6B versions, combines an impressive range with a rugged yet compact package designed for harsh industrial applications and temperatures ranging from -40° to 250° F (-40° to +121° C). No other tag on the market can claim the ruggedness and worldwide usability of these tags.

Features

  • Rugged encapsulation for harsh environments
  • Consistent UHF range performance worldwide
  • Available with Gen 2 and ISO 18000-6B silicon
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use

Specifications

Supported StandardISO 18000-6B, or EPC Global Gen 2
Resonance Frequency860 - 960 MHz
Memory)EPC Tag: 96 bits
ISO Tag: 2024 bits
Dimensions 155mm (wide) x 32mm (high) x 10.1mm (thick)
Operating temperature -40°C to +121°C
Chemical Resistance Machine oil, gasoline, motor oil, methyl ethyl ketone (MEK), isopropyl alcohol, methyl alcohol mineral spirits, acetone, and kerosene.
Ordering Information and Pricing
Part Number Model Number Description RRP T
%
Inc GST
[A] Intermec Large Rigid UHF RFID Tag
IT04U00YTT001A

IT04-L

RFID Long Rigid Tag, Gen2 32x142.7mm

 $8.03 10%

Document Reference: intermec_largerigid Issue: 2006-05-22 | Edit
