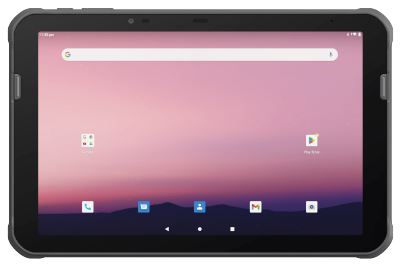

Honeywell - ScanPal EDA10A
Android Rugged Tablet


The Honeywell ScanPal EDA10A tablet is a rugged and reliable 10-inch tablet for mobile businesses requiring instant access to enterprise software. Endure frequent drops from a lightweight and thin tablet designed for workers to easily carry and use daily. The EDA10A is optimised for a range of industries such as retail, field service, warehouse and manufacturing plus transportation & logistics.

The EDA10A leverages the latest 5G and Wi-Fi 6 technology to enable mobile workers in both indoor and outdoor environments. 5G offers high bandwidth and low latency for transport and delivery workers. Wi-Fi 6 offers reliable and high-performance communication for rapid retrieval of pages, images and content. Its large battery with up to 12 hours runtime enables a full shift of uninterrupted use which can be hot-swapped with a fresh battery on the go. The EDA10A includes the Honeywell S0703 scan engine which easily scans barcodes, even damaged ones, ensuring high-performance data capture without interruption.

An extensive range of accessories including protective covers and desktop docking stations enables the tablet to be operated within a range of environments and boosts user satisfaction. Honeywell offers various services to improve customer engagement and team coordination. The EDA10A supports major Enterprise Mobility Management (EMM) systems for businesses to remotely manage their fleet. Reduce IT complexities through managing devices from an EMM system.

Features

  • Optimised to cater diverse business use cases
  • Wi-Fi 6 and 5G connectivity
  • Removable battery
  • 8MP Front and 16MP Rear camera
  • Gorilla Glass 5, multitouch screen, supports glove / wet hand / oily hand modes
  • Manage remotely through Mobile Device Management
  • 12 Month Warranty with Extended Support Options

Specifications

Physical Characteristics
Dimensions
257 mm (l) x 11.7 mm (w) x 166.5 (h) mm
Weight
574g
Environmental Characteristics
Operating Temperature
-20º to 50ºC
Storage Temperature
-30ºC to 70ºC
Humidity
5% to 95% (Non-Condensing)
Drop Protection
1.3m to concrete at room temperature, as per MIL-STD 810H
Sealing
IP65
Hardware / Software
CPU
Qualcomm Snapdragon SM4350-AC, Octa-Core, up to 2.2GHz
Display
1920 x 1200 Full High-Definition, Multi-touch capacitive Touchscreen, LED Backlight, Gorilla Glass 5
Keys
Volume up/down, left/right scanning, power button, 1 touch key on bottom side for scanning
Memory
4 GB RAM / 64 GB Flash; 8 GB RAM / 128 GB Flash
Sensors
Accelerometre, Gyroscope, Compass, Light, Proximity
Operating System
Android 12 - 14
Power
Battery
Li-Ion, 8,000 mAh, 3.85 V, removable, hot swappable
Run Time
12+ Hours
Communication
Radio
IEEE 802.11 a/b/g/n/ac/ax; Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
Camera
Front camera: 8MP
Rear camera: 16MP
Bluetooth
V5.1, Class 2.1, BLE
NFC
Integrated Near Field Communication
Interface
USB 3.0 Type-C, 6 PIN bottom connection


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell ScanPal EDA10A Wi-Fi Only Tablet
EDA10A-00BE91N21RK EA10A-WIFI HONEYWELL TABLET EDA10A 10IN 8/128 WIFI AD/GMS $2,475.00 C1
[B] Honeywell ScanPal EDA10A Wi-Fi and 5G Tablet
EDA10A-11BE94N21RK EDA10A-5G HONEYWELL TABLET EDA10A 10IN 8/128 5G WIFI AD/GMS $2,607.00 C1
[C] Charging Options
EDA10A-SC-R HONEYWELL DOCK CHARGE KIT 1-BAY EDA10A $341.00 C1
Display Dock
EDA10A-DB-0 HONEYWELL DISPLAY DOCK KIT 1-BAY EDA10A $935.00 C1
EDA10A-DB-5 HONEYWELL DISPLAY DOCK KIT 1-BAY EDA10A AU CORD $946.00 C1
Power Options
50136024-001 HONEYWELL PSU 5V/2A KIT EDA5/EDA7/EDA6/CN80/CT60 $44.00 C2
50121666-001 HONEYWELL PSU 12V 3A CT50/CT60HB/EB/QBC/CN80 $44.00 C2
50121667-001 HONEYWELL PSU 12V/7A FOR CT60/RP2/RP4 MULTIDOCK $143.00 C2
[D] Spare Batteries
EDA10A-BAT
[E] Accessories
EDA10A-HS-1PK HONEYWELL HAND STRAP 1/PK EDA10A $154.00 C1
EDA10A-RB-0 HONEYWELL RUBBER BOOT BLK EDA10A $77.00 C1
MBL-HDST-USBC HONEYWELL HEADSET WITH PTT USBC EDA52 $88.00 C2
For additional accessories please contact Sales
[F] Extended Maintenance Support Options
SVCACC-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 3Y $297.00 V
SVCACC-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE ACCESSORY 5Y $495.00 V
SVCREPLACE-MOB3 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 3Y $154.00 V
SVCREPLACE-MOB5 HONEYWELL EDGE SERVICE ADDON MOBILE REPLACE 5Y $275.00 V
