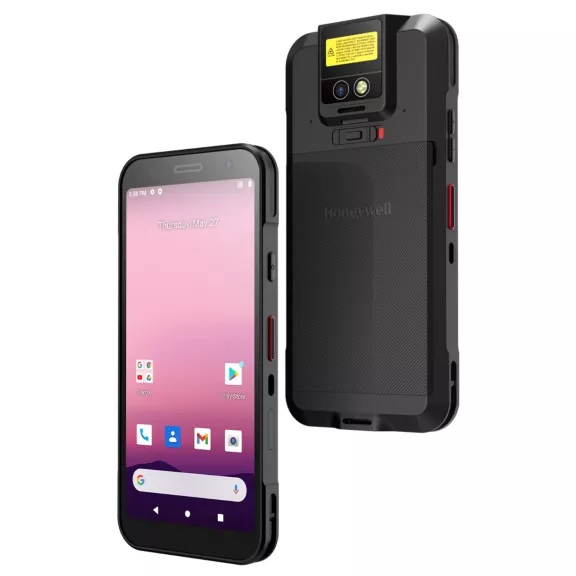

Honeywell CT32 Series
Hand Held PC


The Honeywell CT32 is a lightweight, rugged mobile computer, featuring high-speed barcode scanning and data collection, a FlexRange scan engine, and a long lifecycle. It is ideal for frontline mobile workers in retail, logistics, and warehouse environments.

The CT32 includes Wi-Fi 6E for seamless communication and real-time data transfer, with the option of 5G, a FlexRange™ engine for long-distance barcode reading, and various accessories to meet a diverse range of potential customer needs. Its robust design and long lifecycle help lower the total cost of ownership. Paired with software such as Operational Intelligence, Smart Talk, and Smart Pay, it’s perfect for customers looking to enhance workflow efficiency

Built on the Honeywell Mobility Edge platform, the CT32 is designed for businesses seeking comprehensive solutions, with enhanced security incorporated into the design, made to be secure by default and by deployment throughout its lifecycle, along with robust performance. This includes regular security patch releases, adherence to best programming practices, and continuous validation to mitigate vulnerabilities.

Equipped with the latest processor, the CT32 supports Android 14 and will be security updates and support for a longer duration than typical consumer or even some ruggedized devices from other manufacturers. Businesses can continue to use their devices securely and effectively for years to come.

Features

  • Qualcomm 4490 octa-core, operating at upto 2.4GHz
  • Rugged Form Factor in a Sleek Lightweight Design
  • Common Mobility Edge hardware platform and enterprise lifecycle tools
  • Android 14 upgradable to Android 16 and Android 18 when available *
  • Smart Battery Technology with integrated diagnostic tools
  • 12 Month Warranty with extended Support Options

Specifications

Physical Characteristics
Dimensions
166 (l) x 76.9(w) x 13.9(d) mm
Weight
269g
Environmental Characteristics
Operating Temperature
-20º to 50ºC
Storage Temperature
-30ºC to 70ºC
Humidity
5 to 95% (Non-Condensing)
Drop Protection
1.5 m (5 ft) across operating temperature range
(1.8 m (6 ft) drops to concrete with protective boot across operating temperature range)
Tumble
Exceeds 1000 0.5m (1.6 ft) tumbles
ESD
±8kV Direct, ±15kV Air
Environmental Protection
Independently certified to meet IP68 & IP65 Standards for moisture and particle intrusion
Hardware
Processor
Qualcomm 4490 octa-core, for upto 2.4GHz operation
Display
142 mm (6 in), 1080 × 2160 Pixel Full High Definition
LED Backlight; Multi-touch Capacitive Touchscreen; Gorilla Glass 5
Keys
Volume up/down key, left/right, Scan, Power
Memory
8 GB RAM, 128 GB Flash
Power
3.85V 4.5Ah LiIon Removable Main Battery
Run Time
12+ Hours
Charge Time
Less than 3.5 hours to be fully charged, quick charge 4.0 compliant
WiFi
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz, 5GHz, 6GHz3, 2X2 MU-MIMO, DBS supported, IPv4, IPv6
Additional WLAN Features: 802.11 d/e/h/i/k/r/u/v/w/mc
5G Option
WWAN: 5G Radio, eSIM & nano-SIM options
LTE Support
NFC
Integrated
Bluetooth
V5.3 Bluetooth and BLE Supported
Camera
13-megapixel camera rear, 8-megapixel camera front
Barcode Reader
Honeywell FlexRange – superior 2D imaging scanner in a small form-factor device
Sensors
Light sensor, Proximity sensor, Accelerometer, Gyroscope, Magnetometer
Storage Expansion
MicroSD (supports up to 2 TB)

*Subject to technical feasibility, to be confirmed by Qualcomm

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Honeywell CT32 Hand Held Computer (WLAN) - WiFi
Wireless Local Area Network Only
CT32-X0N-57S1FBG HONEYWELL PDT CT32 2D-SR 8/128 WLAN STD AD/GMS $2,200.00 C4
[B] Honeywell CT32 Hand Held Computer(WWAN/WLAN) - 5G & WiFi
CT32-X1N-57S1FBG HONEYWELL PDT CT32 2D-SR 8/128 5G STD AD/GMS $2,442.00 C4
[C] Charging/Cradle Options
Portable Snap on Cup
CT32-UCP-N
CT32-UCP-B
Single Bay Home Base Charging Kit (Includes Power supply, requires IEC Power Cable)
CT32-HB-UVN-0
CT32-HB-UVB-0
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Single Bay Charging Cradle (Includes USB Cable)
CT32-SC-UVN-0 HONEYWELL DOCK CHARGE KIT 1-BAY CT32 $286.00 C4
CT32-SC-UVB-0 HONEYWELL DOCK CHARGE KIT 1-BAY CT32 W/BOOT $286.00 C4
Single Bay Ethernet Base Charging Kit (Includes Power supply, requires IEC Power Cable)
CT32-EB-UVN-0
CT32-EB-UVB-0
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Single Bay Display Dock Kit (Includes Power supply, requires IEC Power Cable)
CT32-DB-UVN-0
CT32-DB-UVB-0
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Quad Bay Charging Base Kit (Includes Power supply, requires IEC Power Cable)
CT32-CB-UVN-0 HONEYWELL MULTIDOCK KIT CHARGE 4-BAY CT32 NO/BOOT $704.00 C4
CT32-CB-UVB-0 HONEYWELL MULTIDOCK KIT CHARGE 4-BAY CT32 W/BOOT $704.00 C4
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Quad Bay Net Charging Base Kit (Includes Power supply, requires IEC Power Cable)
CT32-NB-UVN-0
CT32-NB-UVB-0
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
Quad Battery Charge Kit (Includes Power supply, requires IEC Power Cable)
EDA52-QBC-0 HONEYWELL MULTIDOCK KIT 4-BAY BATTERY EDA52 $473.00 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[D] Accessories
CBL-500-120-S00-06 HONEYWELL CABLE USB-A TO USB-C 1.2M EDA52/EDA10A $33.00 C2
50136024-001 HONEYWELL PSU 5V/2A KIT EDA5/EDA7/EDA6/CN80/CT60 $44.00 C2
CT32-SH-UVN
CT32-PB-STD HONEYWELL PROTECTIVE BOOT CT32 $22.00 C4
CT32-SP-10PK HONEYWELL SCREEN PROTECTOR 10/PK CT32 $198.00 C4
EDA52-HS-10PK HONEYWELL HANDSTRAP 10/PK FOR EDA52 $110.00 C2
EDA52-WS-10PK
MBL-HDST-USBC HONEYWELL HEADSET WITH PTT USBC EDA52 $88.00 C2
IH45-BK-32S
Replacement Batteries
50172021-001 HONEYWELL BATTERY 4500MAH 3.8V EDA52 $132.00 C2
[E] Support Options
SVCCT32-SG3N HONEYWELL EDGE SERVICE GOLD CT32 5D 3Y $385.00 C4
SVCCT32-SG5N HONEYWELL EDGE SERVICE GOLD CT32 5D 5Y $704.00 C4
SVCCT32-SG1R HONEYWELL EDGE SERVICE GOLD CT32 1Y RNW $165.00 C4
