HID - Seal Tag edTamper
UHF RFID Tag

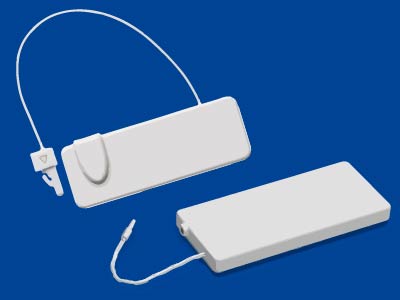

	The HID Global edTamper Seal Tags are tamper evident passive transponders that allow detection of their seal status via RFID. The edTamper tags uses RAIN RFID to identify tags with a broken seal amongst a large number of sealed items. With a quick scan of a UHF reader, tags with broken seals are identified without the need for physical examination. Seal Tag edTamper can be affixed to items by closing the sturdy wire loop through the padlock opening. Once sealed, a bit in the tag’s memory indicates this status, which can be detected with a standard UHF RAIN RFID reader. This unique features allows tamper evident tags to be identified both visually and through a digital confirmation. Typical applications within logistics and asset tracking include sensitive and highly-secure items such as airline life vests and fire extinguishers that require periodic safety and security checks. Features Tamper evident to detect broken seals via RFID Fast and efficient application Large user memory UHF standards compliant UHF read range up to 4m Detect the status of items without opening storage containers during security checks

The HID Global edTamper Seal Tags are tamper evident passive transponders that allow detection of their seal status via RFID. The edTamper tags uses RAIN RFID to identify tags with a broken seal amongst a large number of sealed items. With a quick scan of a UHF reader, tags with broken seals are identified without the need for physical examination.

Seal Tag edTamper can be affixed to items by closing the sturdy wire loop through the padlock opening. Once sealed, a bit in the tag’s memory indicates this status, which can be detected with a standard UHF RAIN RFID reader. This unique features allows tamper evident tags to be identified both visually and through a digital confirmation. Typical applications within logistics and asset tracking include sensitive and highly-secure items such as airline life vests and fire extinguishers that require periodic safety and security checks.

Features

Tamper evident to detect broken seals via RFID
Fast and efficient application
Large user memory
UHF standards compliant
UHF read range up to 4m
Detect the status of items without opening storage containers during security checks

Specifications

	6E5961	6K2963
Physical Characteristics
Dimensions	TAG: 39mm × 14mm × 3.6mm Seal wire: 78mm	TAG: 95mm × 42.5mm × 8mm Seal wire: 80mm
Weight	2g	32g
Housing Material	PC/ABS	ABS
Base Colour	White
Mounting Method	Integrated Wire Loop
Environmental Characteristics
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +70°C
Pull Force	> 10 N	> 30 N
Shock/Fatigue	-40° to +70° C, 100 x 5 min with 30 sec transition
Communication Characteristics
Operating Frequency	860 MHz - 960 MHz (Worldwide)
Chip Type	UCODE G2iM+	EM \| AURA
Memory	112 bit user memory + 256 bit EPC + 96 bit TID	2 kbit user memory + 416 bit EPC + 48 bit TID

**Ordering Information and Pricing**
Part Number	Description	RRP Inc GST	T %
[A] HID - Seal Tag edTamper UHF RFID Tag
6E5961	Seal Tag - UHF eTamper	$6.49	A6
6K2963	HID Seal Tad edTemper Evident UHF OM, Sleeve Loop, TAA Compliant	$24.31	A6
