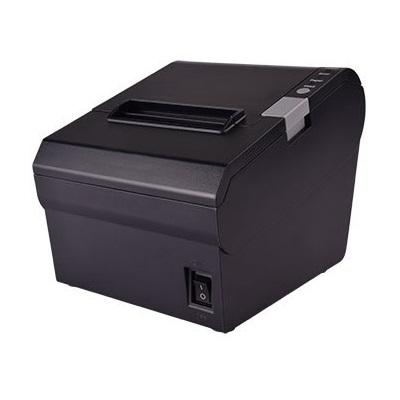

Element - RW973 POS Thermal Printer


The Element RW973 Thermal Receipt Printer is a solid and reliable unit capable of handling receipt printing in high volume transaction environments. Featuring triple interface, it can print out at 300mm/sec and is compact and easy to use.

Features

  • High-speed printing of up to 300mm/sec.
  • Three-in-one interface: RS232, Ethernet and USB
  • Embedded 2D barcode algorithm supporting QR-Code and PDF417
  • Windows/Linux driver
  • Complete OPOS driver
  • Supports page mode printing
  • Dual cash drawer support
  • Supports 58mm, 76mm or 80mm wide thermal paper
  • 36 months return to base warranty

Specifications

 Physical Characteristics
Dimensions147 (h) x 147 (w) x 195 (d) mm
Weight1.8Kg
CutterFull or Partial Cut
 Environmental Characteristics
Operating Temperature0°C to 40°C
Storage Temperature-10°C to 50°C
 Electrical Characteristics
Power Supply24 V DC/2A/td>
 Printing Characteristics
Print MethodDirect Thermal Line Printing
Print ResolutionStandard 203dpi (8dots/mm), Emulated 180dpi (7dots/mm)
Feed MethodFriction Feed
Print Width48/72 mm
FontsAlphanumeric ASCII 9x 17, l2x24dots
User-defined YES
Codepage 48
Print SpeedHigh Speed: 300 mm/s Max.
Paper Feed Speed250 mm/s Max. Continuous Paper Feed
 Media Specifications
Size58 mm or 80 mm Wide, x 83 mm Diameter Max.
TypeDirect Thermal
 Interface
StandardUSB, Serial and Ethernet
OptionalParallel, Bluetooth or WiFi
Cash Drawer Support2 Drawers
 Reliabiliy
Thermal Head150Km
Auto Cutter1,500,000 Cuts


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Element RW973 MkII POS Printer
RW973-002 RW973-USE-BK ELEMENT PRINTER THERMAL RW973 MKII ETH/SER/USB BLK $506.00 C4
