... engineering ICT solutions. 		Denso - QK11
2-Dimensional Mobile Phone BarCode Reader 		   Product Home
Product information

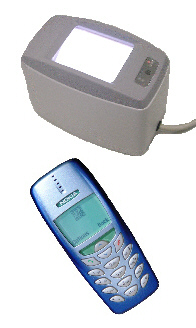

 The QK10 Series QR Code Scanner is a fixed position imager specifically designed for reading 2 dimensional QR Code from the displays of a mobile phones.

This revolutionary technology opens up the possibility of integrating "virtual ticketing" and "electronic entry" systems into sporting venues, conferences, theatres, etc, all using the customers own mobile phone. The potential applications and convenience provided by this technology are unlimited.

In addition to QR Code the QK10 series of reader is also capable of reading many common linear barcodes.

  • Reads barcodes displayed on mobile phones
  • Support QR Code 2-dimensional barcodes
  • Supports EAN, UPC, Code 39, ITF, Codabar and Code 128 linear barcodes
  • Compact size
  • Standard RS232 serial interface
  • 36 Month return to base warranty

Specifications

Mechanical
Dimensions135 (l) x 80 (w) x 100 (h) mm
Weight300g
Environmental
Operating Temp.0°C to 40°C
Storage Temp.-10°C to 60°C
Humidity0 to 95% (non-condensing)
Electrical
Voltage5V
Current<300 mA
Optical
Scan EngineCCD Array
Illumination12 white LED's
Depth of Field 0 to 3.8 cm
Symbologies Decoded - LinearEAN/UPC, Code 39, Interleave 2 of 5, CODABAR, Code 93, Code 128
MatrixQR Code
Communications
Interface RS232 or USB
Baud Rate Options9600, 19200, 38400, 57600, 115200 bps
Ordering Information and Pricing
Part Number Model Number Description RRP T
%
Inc GST
[A] Denso QK-10 Series
9-4129-101-7

QK11-R

Mobile Phone 2D Barcdoe Scanner - RS232

 $2,860.00 10%
9-4129-102-4

QK11-D9U

Mobile Phone 2D Barcode Scanner - RS232/M154 Interface

 $2,442.00 10%
9-4129-201-4

QK11-U

Mobile Phone 2D Barcode Scanner - USB

 $2,860.00 10%
Contact UMD for additional related product and services including "Gateway" to send QR codes to Mobile Phones.
