Miniature Surface Independent UHF RFID Tag 		   Product Home
Product information

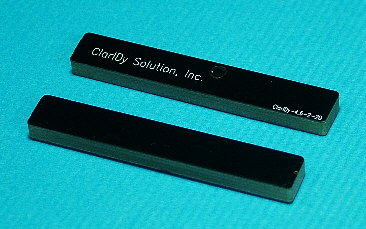

The ClarIDy MSIT50 is a custom designed tag for application onto metalic and non-metalic surfaces. As a passive UHF tag it offers relatively long read distances and is appropriate for use on parts, components, tools, shelves, consumer and electronic products, automobile and container tracking.

Features

  • Encapsulated for harsh environments
  • Small size
  • Consistent UHF range performance
  • EPC Class 1, Gen G2 (C1G2) Protocol
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use

Specifications

Supported StandardEPC C1G2
Resonance Frequency902 - 928 MHz
Memory96 bits
Nominal Read Distance3.0m under FCC Part 15 (36 dBm EIRP))
Write Distance0.3m under FCC Part 15 (36 dBm EIRP))
Dimensions 50mm (long) x 8mm (wide) x 3.7mm (thick)
Operating temperature -40°C to +85°C
Material CompatabilityMetal, Plastic, Wood, etc
Ordering Information and Pricing
Part Number Model Number Description RRP T
%
Inc GST
[A] ClarIDy Solutions MSIT50 Miniature Surface Independent UHF RFID Tag
1-9032-010-6

MSIT50

Miniature Surface Independent UHF Tag

 $14.30 10%
Contact UMD Sales for pricing.

Document Reference: claridy_msit50 Issue: 2008-04-23 | Edit
