... engineering ICT solutions. 		UMD - Model BCD410
Cash Drawer 		   Product Home
Product information

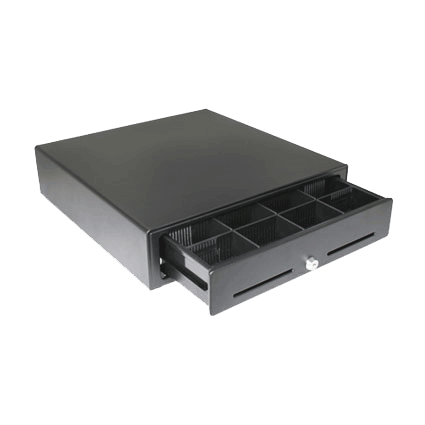

The BCD410 Series computer cash drawer directly connects to POS printers, or other triggering devices.

Cheques or credit card slips can be easily slipped into the drawer through either of 2 media slot on the front of the drawer, to slide in under the drawer insert, without having to open the drawer.

The BCD410 cash drawer does not have an opening bell.

Features

  • 12 Months Warranty
  • Solid metal construction
  • 8 coin compartments
  • 5 adjustable note compartments
  • 3 way locking (locked, unlocked or key operated opening)
  • Emergency drawer release option
  • 1 Insert included with each drawer

Specifications

Physical Characteristics
Dimensions410 mm (w) x 415 mm (d) x 110 mm (h)
ColoursBeige or Black
Weight9.5 kg
ConstructionMetal
Note Compartments5 - Adjustable
Coin Compartments8 Fixed
Drawer LockYes - 3 Position
Emergency ReleaseYes (Optional)
Media SlotYes - front of drawer
BellNo
Electrical Characteristics
Solenoid Rating24 V DC
Soleniod Resistance35-40 ohm
Status SwitchYes
Interface
StandardModular 6pin, RJ-12 - Direct Control
Accessories
External Interface OptionsModel 316 Serial Trigger
Model 317 USB Trigger
Inserts Yes
Lockable LidsYes
Ordering Information and Pricing
Part Number Model Number Description RRP T
%
Inc GST
[A] Cash Drawer BCD410 Series
9-7803-100-6

BCD410

Cash Drawer with Modular Connector - Biege

 $123.20 10%
9-7803-101-3

BCD410B

Cash Drawer with Modular Connector - Black

 $123.20 10%
[B] Accessories
9-7803-109-9

BCT410-IN

Cash Drawer Insert

 $74.80 10%
9-7803-490-8

BCT410-LL

Cash Drawer Lockable Lid

 $74.80 10%
9-0316-110-5

M316P-D9

Cash Drawer Trigger Module with RS232 D9 and Plug Pack

 $110.00 10%
M317B000

M317

Cash Drawer Trigger Module with USB Interface

 $114.40 10%

Document Reference: bcd410 Issue: 17-11-2008 | Edit
