Advantech - Wise 4610 Series
Industrial LoRa Wireless Module
 |

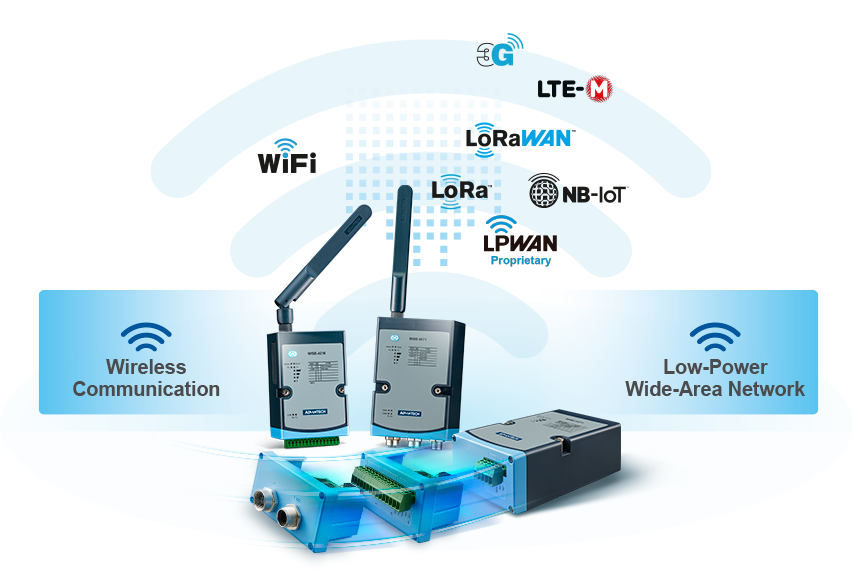

The WISE-4610 Series is a LoRa/LoRaWAN-based wireless IoT sensor node device, integrated with IoT data acquisition, processing, and publishing functions. As well as various I/O types, the WISE-4610 series provides data pre-scaling, data logic, and data logger functions. LPWAN is a type of wireless telecommunication wide area network designed to allow long range communications at a low data rate among IoT applications, such as sensors operated on a battery. Its benefit is to offer multi-year battery lifetime for sensors/applications to send small amounts of data over long distances a few times per hour suitable for different environments. Private LoRa and LoRaWAN are one of category of LPWAN which belong to the non-cellular LPWAN wireless communication network protocols enables very long range transmissions with low power consumption, operating in the non-licensed spectrum. The LoRaWAN networks in a star topology have gateway relaying the data between the sensor nodes and the network server. Communication between the sensor nodes and the gateway goes over the wireless channel utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone IP-based network. The LoRaWAN end nodes(sensors) typically use Low Power and are battery powered (Class A and Class C). LoRa embedded sensors that run on batteries can last from 2–5 years typically. The LoRa sensors can transmit signals over distances from 1km—10km. The Wise-S600 Series I/O Modules used with the Wise-4610 Series sensor nodes are available in several configurations, providing a choice in the types of digital and analog inputs and outputs, as well as options for serial data channels for connection to other equipment. Features
|
|---|
Specifications
| IoT LoRa Sensor Node I/O Module | WISE-4610 | WISE-4610P |
|---|---|---|
| Physical Characteristics | ||
| Dimensions | 122 (h) x 82 (w) x 49 (d) mm (Without Antenna) | |
| Mounting | DIN 35 rail, wall, pole and stack | |
| Case | PC + PBT | |
| Connector | Plug-in screw terminal block (I/O and power) | |
| Environmental Specifications | ||
| Operating Temperature: With Battery: | -25° to 70°C - | -25° to 70°C 0° to 60°C |
| Storage Temperature: With Battery: | -40° to 85°C - | -40° to 85°C -20° to 60°C |
| Operating Humidity | 5 to 95 % (non condensing) | |
| Storage Humidity | 0 to 95 % (non condensing) | |
| GPS | ||
| GNNS Systems | - | GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS signals |
| GPS Antenna Type | - | Internal |
| Connectivity | ||
| Standard | LoRaWAN or Private LoRa | |
| Frequency Range and Region Private LoRa: LoRaWAN: | EU 863-870 (MHz), US 902-928 (MHz), JP 915-928 (MHz) EU 868, NA 915, JP 923, AS 923 | |
| Outdoor Range | 15Km (L.o.S) by pairing with WISE-6610 (with 2 dBi Antenna) | |
| Transmitt Power | Up to +18dBm | |
| Receiver Sensitivity | Up to -136dBm at SF = 12 / 125KHz | |
| Data Rate | 50 kbps at FSK mode (EU868), 21.9 kbps at SF7 mode (US915), 5.47 kbps at SF7 mode (JP923) | |
| Topology | Star | |
| Function | End Node | |
| Antenna Type | External | |
| Configuration Port | Micro-B USB | |
| Power | ||
| Input | 10-50V/DC | 10-50V/DC, Solar, 4000mAh Rechargeable Lithium Battery |
| Consumption | 5W Max. @ 24V/DC | 11W Max. @ 24V/DC with Battery Charging |
| User Feedback | ||
| LED Indicators | Status, Error, Tx, Rx, Signal Level | Status, Error, Tx, Rx, Signal/Battery Level If battery powered LED's will turn off after 15 seconds |
| WISE-S600 IP65 Modules with M12 Connectors | ||
| WISE-S614A | 4x Analog inputs, 4x Digital Inputs | |
| WISE-S615A | 4x RTD Temperature Inputs | |
| WISE-S617A | 2x Analog inputs, 2x Digital Inputs, 1 digital Output, 1x RS485 port with 2 Channel 12V/DC Power Output | |
| WISE-S672A | 6x Digital Inputs, 2x RS485 or 1x RS485 and 1x RS232 | |
| WISE-S600 Modules with Terminal Block | ||
| WISE-S614T-A | 4x Analog inputs, 4x Digital Inputs | |
| WISE-S617T-A | 2x Analog inputs, 2x Digital Inputs, 1 digital Output, 1x RS485 port with 2 Channel 12V/DC Power Output | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Advantech Wise 4610 Series Industrial LoRaWAN Modules | ||||
| WISE-4610-JA | WISE-4610 | OUTDOOR LORA WIRELESS SENSOR MODULE | $539.00 | C3 |
| WISE-4610P-JA | ADVANCED INDUSTRIAL LORA WIRELESS I/O M | $902.00 | C3 | |
| [B] Advantech WISE-S600 Series I/O Modules (M12) | ||||
| WISE-S614-A | WISE-4600 4AI/4DI I/O MODULE | $473.00 | C3 | |
| WISE-S615-A | WISE-4600 RTD MODULE | $528.00 | C3 | |
| WISE-S617-A | WISE-4600 2AI/2DI/1DO/1RS-485 I/O MODULE | $528.00 | C3 | |
| WISE-S672-A | WISE-4600 6DI/1RS-485/1RS-485 or RS-232 | $319.00 | C3 | |
| [C] Advantech WISE-S600 Series I/O Modules (Terminal Block) | ||||
| WISE-S614-A | WISE-4600 4AI/4DI I/O MODULE | $473.00 | C3 | |
| WISE-S617-A | WISE-4600 2AI/2DI/1DO/1RS-485 I/O MODULE | $528.00 | C3 | |
| [D] Accessories | ||||
| PWR-242-AE | 50 WATTS DIN-RAIL POWER SUPPLY | $385.00 | C3 | |
| PWR-243-AE | 72 WATTS PANEL MOUNT POWER SUPPLY | $319.00 | C3 | |
| PWR-244-AE | 100 WATTS PANEL MOUNT POWER SUPPLY | $363.00 | C3 | |
